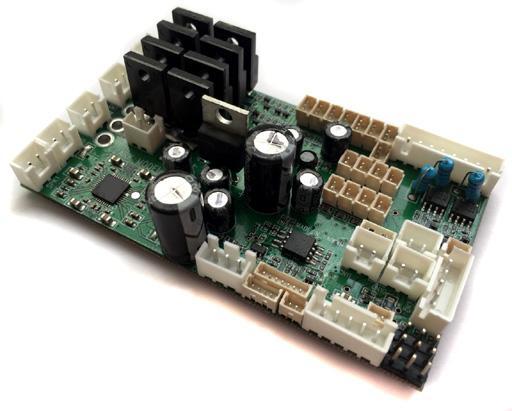

Clark TK80 / TK80S Multi-Function Unit for RC Tank

RM 659.00



PLEASE SPECIFY TANK SOUND - we need to order from the factory as this is not dealer programmable

Overview

  • TK80 series controller uses 8-CH conventional PWM or 10-CH  S.BUS  RC system to control R/C tank's forward/backward movement, sharp turning, pivoting, turret rotation and gun barrel evaluation at variable speed

  • Ultrasonic ESC*3  for two track motor and turret rotation

  • Adjustable ESC start voltage allows you to adjust lowest speed for different track motor

  • Carefree reversing

  • Ultra Low turn-on resistance FET for track motor ESC

  • 22KHz, 8-bit high quality sound with digital sound mixer

  • Maximum of 5 channel of sound track, main gun, machine gun, turret rotate, gun barrel elevation and engine sound can be generated at the same time

  • On-board, CLASS-D,15W+ 15Waudio amplifier with External audio input

  • 2.0A BEC, can also be used to power 5.8G or WiFi FPV transmitter

  • S.Busvariant (TK80S)  has EPM*4 for Left track, right track, gun elevation(EPM1) and turret rotation/gun traverses(EPM2)

  • Traditional (TK80)  variant  has EPM*4 for Left track, right track, gun elevation (EPM1) and turret rotation/gun traverses (EPM2)

  • Wide operating voltage rage, from 7.2 to 12V, support 3S Li-Po battery

  • Support air-soft gun with sound synchronization

  • Support TAMIYA and HLIR battle unit and format

  • Support RealRecoilservo port

  • Support RecoilSolenoidfor 2nd Machine Gun( MG2 )

  • G variant Support gun barrel stabilizer

  • Safety shutoff prevents unwanted movement while signal lost

  • Auto R/C signal detection

  • Miniature design(92mm X 52.3mm X 20mm) for 1/25~1/16  R/C Tank

  • V2 Smoker driver

  • V2  Mixer

  • Remote Volume Control

  • Adjustable engine running state threshold


Terminology

Ultrasonic ESC is the ESC block which switch FET at ultrasonic speed, make motor rotation extreme  smooth and quiet. start voltage of ESC can also be adjusted for different type of motor.


Carefree reversing:Unlike some other control board, there is no need for TK series board to delay before being commanded to reverse,can go from full forward immediately to full reverse or vice versa

EPM ( ESC/PWM module)is peripheral which can be switched to ESC or PWM mode,allows the user to drive brushed motor or servo motor, in ESC mode, ESC port is enabled, can be used to drive brushed motor, In PWM mode, PWM port is enabled to driver servo motor, sound effect stopped when servo motor reach end point.

RealRecoil allows you to recreate real gun barrel recoil movement with single & cheap servo motor


RecoilSolenoid allows you to recreate MG/Auto cannon barrel recoil movement with Solenoid


V2 Smoker driver smoker fan/compressor speed is proportional to engine RPM and Load


V2  Mixer turning is achieved by reducing track speed and also increase opposite track speed to achieve smoother turning.


Remote Volume Control audio volume can be controlled by radio transmitter, only available on S.BUS version


External audio input allows you to feed audio signal from other source for 2nd speaker port ( CN5A )


PLEASE SPECIFY TANK SOUND - we need to order from the factory as this is not dealer programmable
note: additional cables (CAB001) for extra functions (lights, signal lights, rotating beacon etc) are NOT included and must be purchased separately.

more information:
http://www.clark-model.com/eng/prod_rx80/index.html
